HMC344ATCPZ-EP-R7

In Stock: 1,930

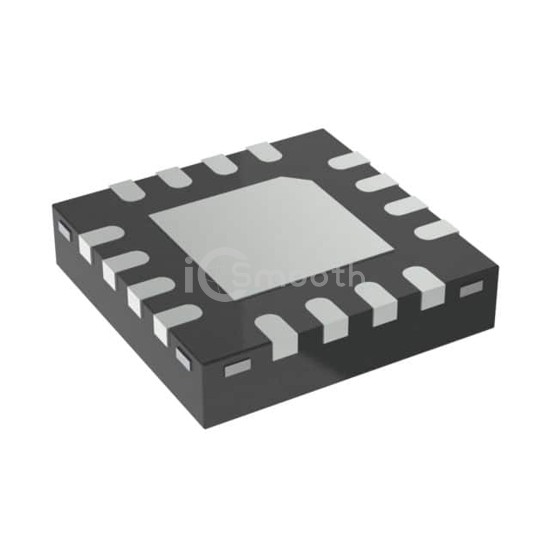

HMC344ATCPZ-EP-R7 - Analog Devices Inc. - RF Switches
REF: HMC344ATCPZ-EP-R7 Analog Devices Inc.
HMC344ATCPZ-EP-R7

Analog Devices Inc.

IC RF SWITCH SP4T 16LFCSP

HMC344ATCPZ-EP-R7 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 16LFCSP. Key specifications: operating temperature -55°C ~ 125°C, voltage - supply -3V ~ -5V, package / case 16-VFQFN Exposed Pad, CSP, frequency range 100MHz ~ 8GHz.

Datasheet Request a Quote

In Stock: 1,930

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
Topology-
CircuitSP4T
Frequency Range100MHz ~ 8GHz
Isolation32dB
Insertion Loss2.1dB
Test Frequency8GHz
P1dB25dBm
IIP344dBm
Features-
Impedance50Ohm
Voltage - Supply-3V ~ -5V
Operating Temperature-55°C ~ 125°C
Package / Case16-VFQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP (3x3)
