HMC322-SX

In Stock: 6,969
HMC322-SX - Analog Devices Inc. - RF Switches
REF: HMC322-SX Analog Devices Inc.

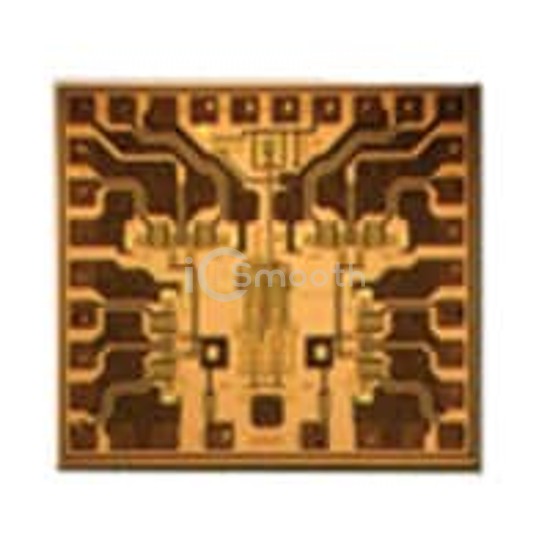

HMC322-SX

Analog Devices Inc.

IC RF SWITCH SP8T 10GHZ DIE

HMC322-SX is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP8T 10GHZ DIE. Key specifications: operating temperature -40°C ~ 85°C, package / case Die, frequency range 0Hz ~ 10GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 6,969

Specifications

16 parameters
Product StatusObsolete
RF TypeVSAT
TopologyAbsorptive
CircuitSP8T
Frequency Range0Hz ~ 10GHz
Isolation32dB
Insertion Loss2.1dB
Test Frequency6GHz
P1dB23dBm
IIP338dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-40°C ~ 85°C
Package / CaseDie
Supplier Device PackageDie
