HMC241ATCPZ-EP-R7

In Stock: 8,556

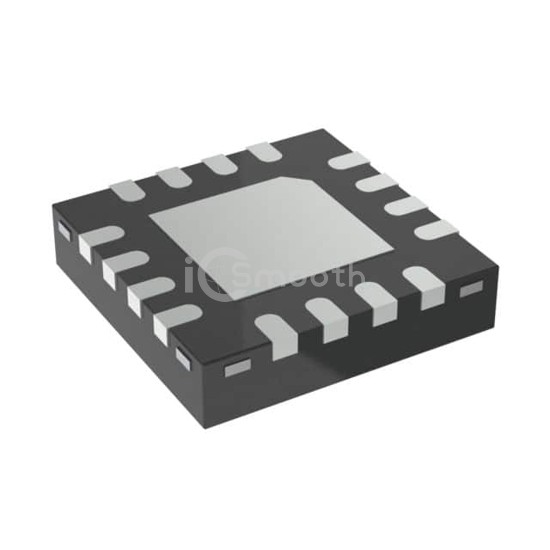

HMC241ATCPZ-EP-R7 - Analog Devices Inc. - RF Switches
REF: HMC241ATCPZ-EP-R7 Analog Devices Inc.
HMC241ATCPZ-EP-R7

Analog Devices Inc.

EP GAAS MMIC SP4T

HMC241ATCPZ-EP-R7 is a RF Switches manufactured by Analog Devices Inc.. EP GAAS MMIC SP4T. Key specifications: operating temperature -55°C ~ 125°C, voltage - supply 3V ~ 5V, package / case 16-VFQFN Exposed Pad, CSP, frequency range 100MHz ~ 4GHz.

Datasheet Request a Quote

In Stock: 8,556

Tiered Pricing USD
1+ $11.8700 —
10+ $10.3190 -13%
25+ $9.7784 -18%
100+ $9.0369 -24%
250+ $8.5930 -28% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCellular, 4G
TopologyAbsorptive
CircuitSP4T
Frequency Range100MHz ~ 4GHz
Isolation32dB
Insertion Loss1.2dB
Test Frequency4GHz
P1dB29dBm
IIP347dBm
Features-
Impedance50Ohm
Voltage - Supply3V ~ 5V
Operating Temperature-55°C ~ 125°C
Package / Case16-VFQFN Exposed Pad, CSP
Supplier Device Package16-LFCSP (3x3)
