HMC232

In Stock: 5,999

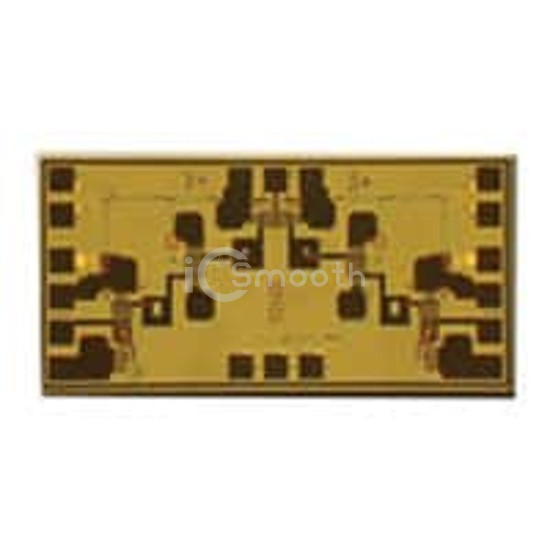

HMC232 - Analog Devices Inc. - RF Switches
REF: HMC232 Analog Devices Inc.
HMC232

Analog Devices Inc.

IC RF SWITCH SPDT 15GHZ DIE

HMC232 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 15GHZ DIE. Key specifications: operating temperature -55°C ~ 85°C, package / case Die, frequency range 0Hz ~ 15GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 5,999

Specifications

16 parameters
Product StatusObsolete
RF TypeVSAT
TopologyAbsorptive
CircuitSPDT
Frequency Range0Hz ~ 15GHz
Isolation50dB
Insertion Loss2.2dB
Test Frequency10GHz
P1dB26dBm
IIP349dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-55°C ~ 85°C
Package / CaseDie
Supplier Device PackageDie
