HMC1084LC4TR

In Stock: 217

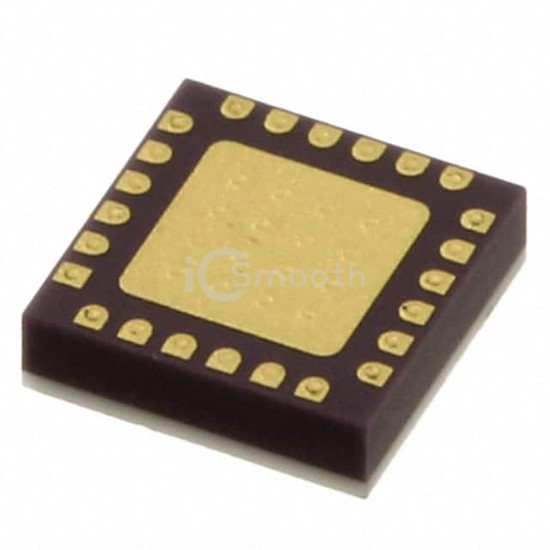

HMC1084LC4TR - Analog Devices Inc. - RF Switches
REF: HMC1084LC4TR Analog Devices Inc.
HMC1084LC4TR

Analog Devices Inc.

IC RF SWITCH SP4T 30GHZ 24SMT

HMC1084LC4TR is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 30GHZ 24SMT. Key specifications: operating temperature -55°C ~ 85°C, package / case 24-TFQFN Exposed Pad, frequency range 23GHz ~ 30GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 217

Tiered Pricing USD
1+ $43.5100 —
10+ $38.0860 -12%
25+ $36.2084 -17% BEST

Specifications

16 parameters
Product StatusActive
RF TypeVSAT
TopologyReflective
CircuitSP4T
Frequency Range23GHz ~ 30GHz
Isolation26dB
Insertion Loss3.5dB
Test Frequency30GHz
P1dB-
IIP347dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-55°C ~ 85°C
Package / Case24-TFQFN Exposed Pad
Supplier Device Package24-QFN (4x4)
