HMC1084LC4

In Stock: 431

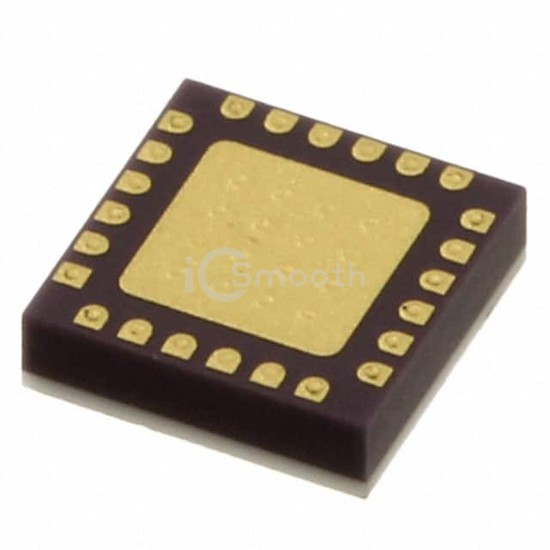

HMC1084LC4 - Analog Devices Inc. - RF Switches
REF: HMC1084LC4 Analog Devices Inc.
HMC1084LC4

Analog Devices Inc.

IC RF SWITCH SP4T 30GHZ 24SMT

HMC1084LC4 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 30GHZ 24SMT. Key specifications: operating temperature -55°C ~ 85°C, package / case 24-TFQFN Exposed Pad, frequency range 23GHz ~ 30GHz, impedance 50Ohm.

Datasheet Request a Quote

In Stock: 431

Tiered Pricing USD
1+ $36.9800 —
10+ $32.3730 -12%
25+ $30.7772 -17%
100+ $28.5906 -23%
250+ $28.2625 -24% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSP4T
Frequency Range23GHz ~ 30GHz
Isolation26dB
Insertion Loss3.3dB
Test Frequency30GHz
P1dB-
IIP343dBm
Features-
Impedance50Ohm
Voltage - Supply-
Operating Temperature-55°C ~ 85°C
Package / Case24-TFQFN Exposed Pad
Supplier Device Package24-QFN (4x4)
