HMC1055LP2CETR

In Stock: 504

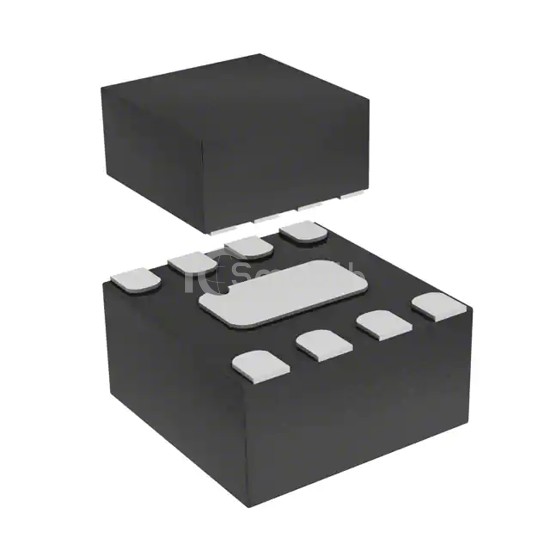

HMC1055LP2CETR - Analog Devices Inc. - RF Switches
REF: HMC1055LP2CETR Analog Devices Inc.
HMC1055LP2CETR

Analog Devices Inc.

IC RF SWITCH SPST 4GHZ 8DFN

HMC1055LP2CETR is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPST 4GHZ 8DFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 1.2V ~ 5V, package / case 8-VFDFN Exposed Pad, CSP, frequency range 0Hz ~ 4GHz.

Datasheet Request a Quote

In Stock: 504

Tiered Pricing USD
1+ $5.3800 —
10+ $4.6600 -13%
25+ $4.4084 -18%
100+ $4.0625 -24%
250+ $3.8552 -28% BEST

Specifications

16 parameters
Product StatusActive
RF TypeWiMax, WLAN
TopologyReflective
CircuitSPST
Frequency Range0Hz ~ 4GHz
Isolation28dB
Insertion Loss1.8dB
Test Frequency4GHz
P1dB-
IIP363dBm
Features-
Impedance50Ohm
Voltage - Supply1.2V ~ 5V
Operating Temperature-40°C ~ 85°C
Package / Case8-VFDFN Exposed Pad, CSP
Supplier Device Package8-LFCSP (2x2)
