HMC-C058

In Stock: 20

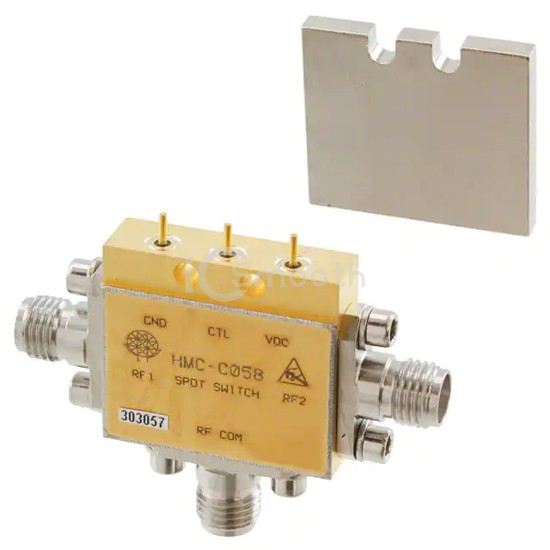

HMC-C058 - Analog Devices Inc. - RF Switches
REF: HMC-C058 Analog Devices Inc.
HMC-C058

Analog Devices Inc.

IC RF SWITCH SPDT 18GHZ

HMC-C058 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 18GHZ. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 5V, package / case Module, SMA Connectors, frequency range 0Hz ~ 18GHz.

Datasheet Request a Quote

In Stock: 20

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSPDT
Frequency Range0Hz ~ 18GHz
Isolation55dB
Insertion Loss3dB
Test Frequency18GHz
P1dB27dBm
IIP346dBm
Features-
Impedance50Ohm
Voltage - Supply5V
Operating Temperature-55°C ~ 85°C
Package / CaseModule, SMA Connectors
Supplier Device Package-
