HMC-C011

In Stock: 5

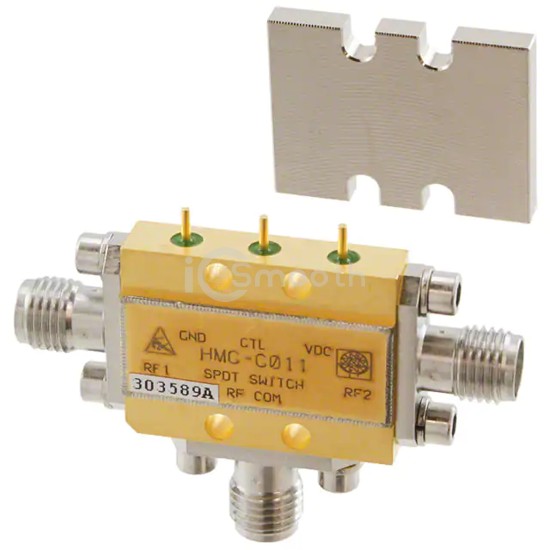

HMC-C011 - Analog Devices Inc. - RF Switches
REF: HMC-C011 Analog Devices Inc.
HMC-C011

Analog Devices Inc.

IC RF SWITCH SPDT 20GHZ

HMC-C011 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 20GHZ. Key specifications: operating temperature -55°C ~ 85°C, voltage - supply 5V, package / case Module, SMA Connectors, frequency range 0Hz ~ 20GHz.

Datasheet Request a Quote

In Stock: 5

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSPDT
Frequency Range0Hz ~ 20GHz
Isolation35dB
Insertion Loss4dB
Test Frequency20GHz
P1dB23dBm
IIP345dBm
Features-
Impedance50Ohm
Voltage - Supply5V
Operating Temperature-55°C ~ 85°C
Package / CaseModule, SMA Connectors
Supplier Device Package-
