DAC8426BR/883C

In Stock: 81
DAC8426BR/883C - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: DAC8426BR/883C Analog Devices Inc.

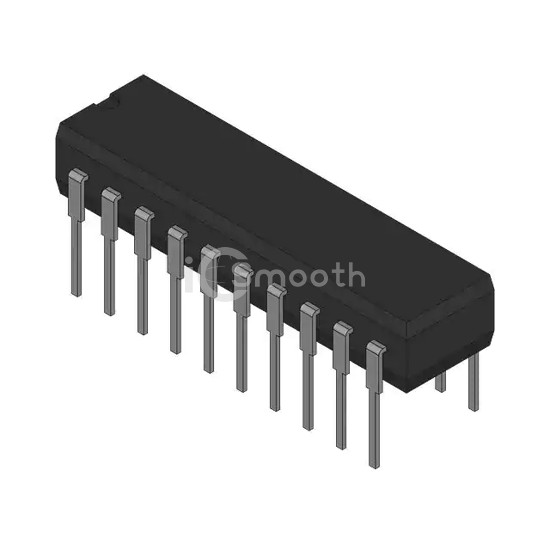

DAC8426BR/883C

Analog Devices Inc.

QUAD 8-BIT VOLTAGE OUT DAC +REF

DAC8426BR/883C is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. QUAD 8-BIT VOLTAGE OUT DAC +REF. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - supply, digital 13.5V ~ 16.5V, package / case 20-CDIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 81

Specifications

16 parameters
Product StatusActive
Number of Bits8
Number of D/A Converters4
Settling Time3µs (Typ)
Output TypeVoltage - Buffered
Differential OutputNo
Data InterfaceParallel
Reference TypeInternal
Voltage - Supply, Analog13.5V ~ 16.5V
Voltage - Supply, Digital13.5V ~ 16.5V
INL/DNL (LSB)±0.5, ±1
ArchitectureR-2R
Operating Temperature-55°C ~ 125°C
Package / Case20-CDIP (0.300", 7.62mm)
Supplier Device Package20-CERDIP
Mounting TypeThrough Hole
