AMP01BX

In Stock: 573
AMP01BX - Analog Devices Inc. - Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
REF: AMP01BX Analog Devices Inc.
AMP01BX

Analog Devices Inc.

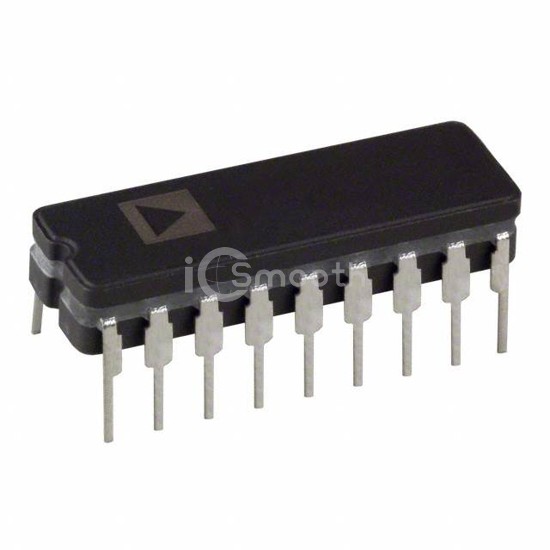

IC INST AMP 1 CIRCUIT 18CDIP

AMP01BX is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by Analog Devices Inc.. IC INST AMP 1 CIRCUIT 18CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 18-CDIP (0.300", 7.62mm), current - supply 3mA.

Datasheet Request a Quote

In Stock: 573

Specifications

17 parameters
Product StatusActive
Amplifier TypeInstrumentation
Number of Circuits1
Output Type-
Slew Rate4.5V/µs
Gain Bandwidth Product-
-3db Bandwidth570 kHz
Current - Input Bias2 nA
Voltage - Input Offset40 µV
Current - Supply3mA
Current - Output / Channel120 mA
Voltage - Supply Span (Min)9 V
Voltage - Supply Span (Max)36 V
Operating Temperature-55°C ~ 125°C
Mounting TypeThrough Hole
Package / Case18-CDIP (0.300", 7.62mm)
Supplier Device Package18-CERDIP
