ADV7146KN50

In Stock: 3,103

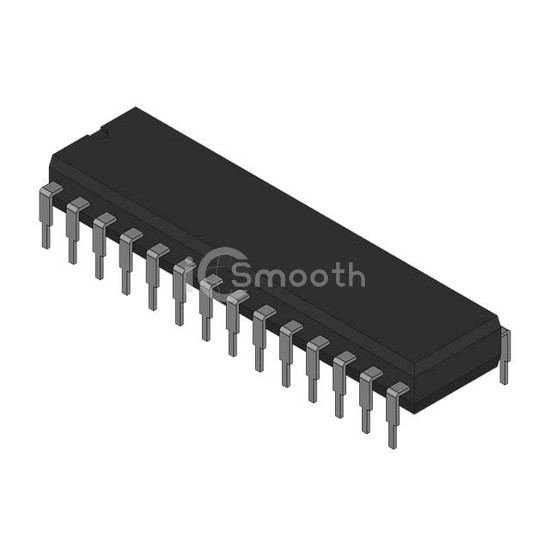

ADV7146KN50 - Analog Devices Inc. - Data Acquisition - Digital to Analog Converters (DAC)
REF: ADV7146KN50 Analog Devices Inc.
ADV7146KN50

Analog Devices Inc.

CONTINUOUS EDGE GRAPHICS RAM-DAC

ADV7146KN50 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. CONTINUOUS EDGE GRAPHICS RAM-DAC. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.75V ~ 5.25V, package / case 28-DIP (0.600", 15.24mm).

Datasheet Request a Quote

In Stock: 3,103

Specifications

16 parameters
Product StatusActive
Number of Bits24
Number of D/A Converters3
Settling Time-
Output TypeVoltage - Buffered
Differential OutputNo
Data Interface-
Reference TypeExternal, Internal
Voltage - Supply, Analog4.75V ~ 5.25V
Voltage - Supply, Digital4.75V ~ 5.25V
INL/DNL (LSB)±1, ±1
Architecture-
Operating Temperature0°C ~ 70°C
Package / Case28-DIP (0.600", 15.24mm)
Supplier Device Package28-PDIP
Mounting TypeThrough Hole
