Name: ADV478KP35
Brand: Analog Devices Inc.
SKU: ADV478KP35
Price: 9.66 USD
Availability: InStock

REF: ADV478KP35 Analog Devices Inc.

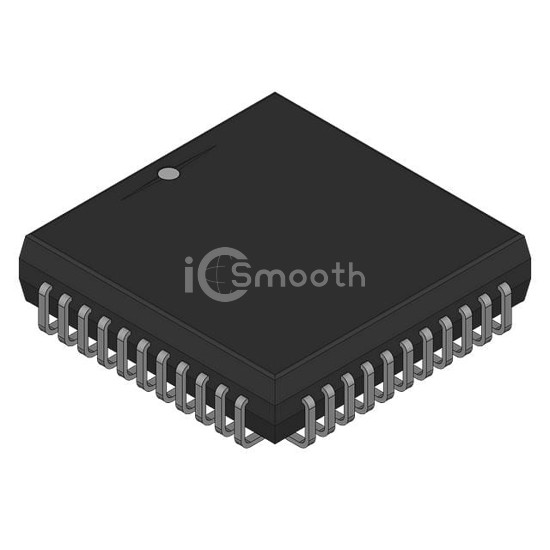

ADV478KP35

256 X 24 COLOR PALETTE RAM-DAC

ADV478KP35 is a Data Acquisition - Digital to Analog Converters (DAC) manufactured by Analog Devices Inc.. 256 X 24 COLOR PALETTE RAM-DAC. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C, voltage - supply, digital 4.5V ~ 5.25V, 4.75V ~ 5.5V, package / case 44-LCC (J-Lead).

Datasheet Request a Quote

In Stock: 30,500

Specifications

16 parameters

Product Status	Active
Number of Bits	6, 8
Number of D/A Converters	3
Settling Time	28ns (Typ)
Output Type	Current - Unbuffered
Differential Output	Yes
Data Interface	-
Reference Type	External

Voltage - Supply, Analog	4.5V ~ 5.25V, 4.75V ~ 5.5V
Voltage - Supply, Digital	4.5V ~ 5.25V, 4.75V ~ 5.5V
INL/DNL (LSB)	±1 (Max), ±1 (Max)
Architecture	Pipelined
Operating Temperature	0°C ~ 70°C
Package / Case	44-LCC (J-Lead)
Supplier Device Package	44-PLCC (16.59x16.59)
Mounting Type	Surface Mount
