Name: ADUM7643CRQZ
Brand: Analog Devices Inc.
SKU: ADUM7643CRQZ
Price: 8.84 USD
Availability: InStock

REF: ADUM7643CRQZ Analog Devices Inc.

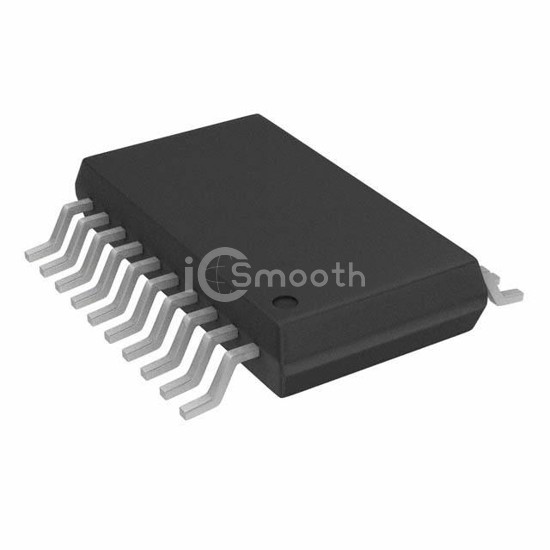

ADUM7643CRQZ

Analog Devices Inc.

DGTL ISO 1000VRMS 6CH GP 20QSOP

ADUM7643CRQZ is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 1000VRMS 6CH GP 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 3V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,628

Tiered Pricing USD

1+ $8.8400 —

10+ $6.0130 -32%

56+ $4.8250 -45% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	6
Inputs - Side 1/Side 2	3/3
Channel Type	Unidirectional
Voltage - Isolation	1000Vrms
Common Mode Transient Immunity (Min)	15kV/µs

Data Rate	25Mbps
Propagation Delay tpLH / tpHL (Max)	50ns, 50ns
Pulse Width Distortion (Max)	6ns
Rise / Fall Time (Typ)	2ns, 2ns
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-QSOP
