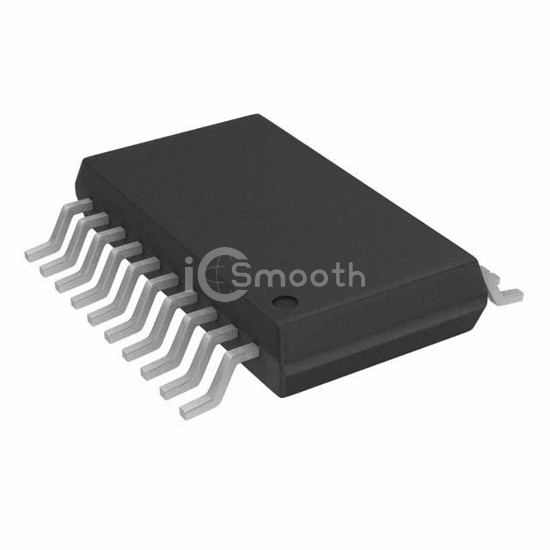

Name: ADUM7640ARQZ-RL7
Brand: Analog Devices Inc.
SKU: ADUM7640ARQZ-RL7
Price: 7.98 USD
Availability: InStock

REF: ADUM7640ARQZ-RL7 Analog Devices Inc.

ADUM7640ARQZ-RL7

Analog Devices Inc.

DGTL ISO 1000VRMS 6CH GP 20QSOP

ADUM7640ARQZ-RL7 is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 1000VRMS 6CH GP 20QSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 3V ~ 5.5V, package / case 20-SSOP (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,519

Tiered Pricing USD

1+ $7.9800 —

10+ $5.3410 -33%

25+ $4.6536 -42%

100+ $3.8766 -51%

250+ $3.4950 -56%

500+ $3.3750 -58% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	6
Inputs - Side 1/Side 2	6/0
Channel Type	Unidirectional
Voltage - Isolation	1000Vrms
Common Mode Transient Immunity (Min)	15kV/µs

Data Rate	1Mbps
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Pulse Width Distortion (Max)	25ns
Rise / Fall Time (Typ)	2ns, 2ns
Voltage - Supply	3V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.154", 3.90mm Width)
Supplier Device Package	20-QSOP
