ADUM7223CCCZ

In Stock: 1,348

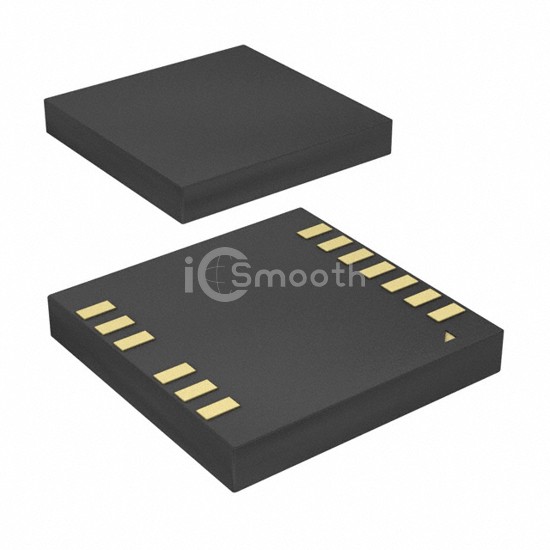

ADUM7223CCCZ - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM7223CCCZ Analog Devices Inc.
ADUM7223CCCZ

Analog Devices Inc.

DGTL ISO 2.5KV GATE DRIVER 13LGA

ADUM7223CCCZ is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. DGTL ISO 2.5KV GATE DRIVER 13LGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 13-VFLGA.

Datasheet Request a Quote

In Stock: 1,348

Tiered Pricing USD
1+ $6.9300 —
10+ $4.6020 -34%
25+ $3.9948 -42%
224+ $3.0070 -57%
448+ $2.7936 -60%
672+ $2.7875 -60% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)50kV/µs
Propagation Delay tpLH / tpHL (Max)62ns, 62ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)12ns, 12ns
Current - Output High, Low-
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.5V ~ 18V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case13-VFLGA
Supplier Device Package13-LGA (5x5)
Approval Agency-
