ADUM7223ACCZ-RL7

In Stock: 5,602

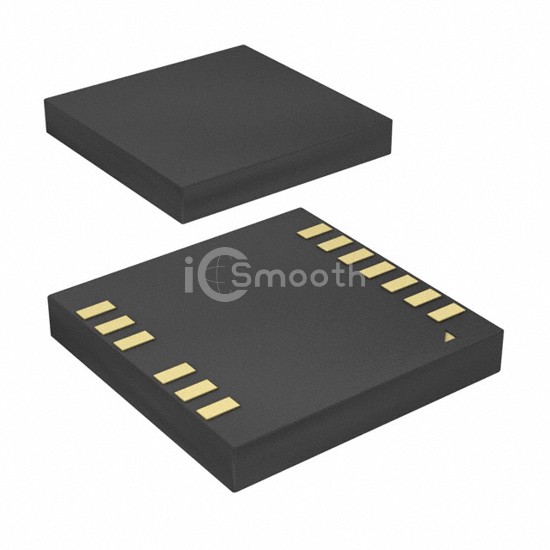

ADUM7223ACCZ-RL7 - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM7223ACCZ-RL7 Analog Devices Inc.
ADUM7223ACCZ-RL7

Analog Devices Inc.

DGTL ISO 2.5KV GATE DRIVER 13LGA

ADUM7223ACCZ-RL7 is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. DGTL ISO 2.5KV GATE DRIVER 13LGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 13-VFLGA.

Datasheet Request a Quote

In Stock: 5,602

Tiered Pricing USD
1+ $6.9300 —
10+ $4.6020 -34%
25+ $3.9948 -42%
100+ $3.3078 -52%
250+ $2.9706 -57%
500+ $2.7875 -60% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)50kV/µs
Propagation Delay tpLH / tpHL (Max)68ns, 68ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)12ns, 12ns
Current - Output High, Low-
Current - Peak Output4.5A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.5V ~ 18V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case13-VFLGA
Supplier Device Package13-LGA (5x5)
Approval Agency-
