Name: ADUM6423ABRNZ5
Brand: Analog Devices Inc.
SKU: ADUM6423ABRNZ5
Price: 15.58 USD
Availability: InStock

REF: ADUM6423ABRNZ5 Analog Devices Inc.

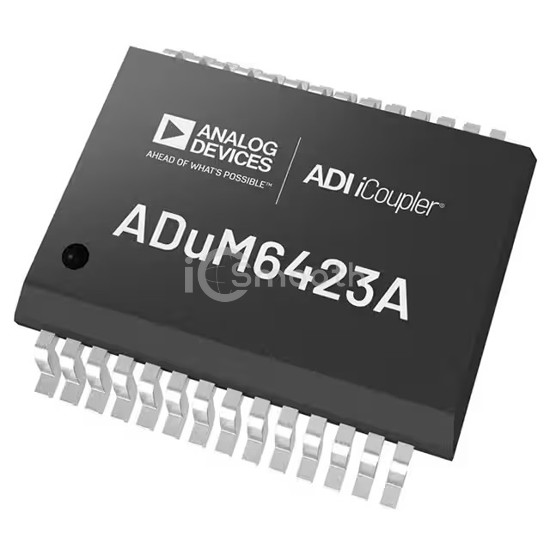

ADUM6423ABRNZ5

Analog Devices Inc.

DGTL ISO 5KV 4CH GEN PRP 28SOIC

ADUM6423ABRNZ5 is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 5KV 4CH GEN PRP 28SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.7V ~ 5.5V, package / case 28-BSSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 1,345

Tiered Pricing USD

1+ $15.5800 —

10+ $10.8800 -30%

46+ $8.9861 -42%

138+ $8.2625 -47% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	Yes
Number of Channels	4
Inputs - Side 1/Side 2	1/3
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	75kV/µs

Data Rate	100Mbps
Propagation Delay tpLH / tpHL (Max)	17ns, 17ns
Pulse Width Distortion (Max)	5ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	1.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package	28-SOIC-W-FP
