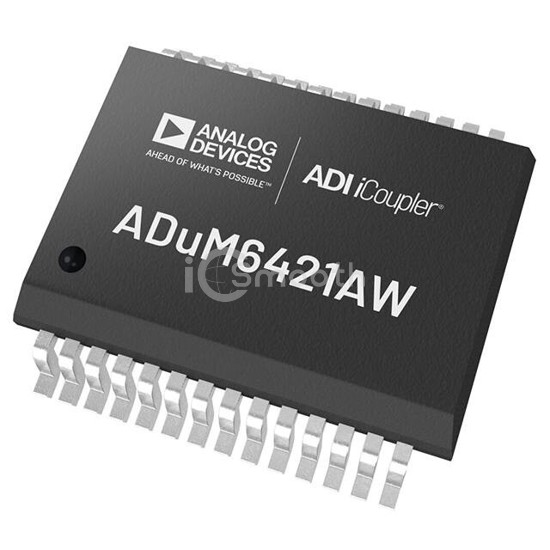

Name: ADUM6421AWBRNZ5
Brand: Analog Devices Inc.
SKU: ADUM6421AWBRNZ5
Price: 16.76 USD
Availability: InStock

REF: ADUM6421AWBRNZ5 Analog Devices Inc.

ADUM6421AWBRNZ5

Analog Devices Inc.

DGTL ISO 5KV 4CH GEN PRP 28SOIC

ADUM6421AWBRNZ5 is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 5KV 4CH GEN PRP 28SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.7V ~ 5.5V, package / case 28-BSSOP (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,350

Tiered Pricing USD

1+ $16.7600 —

10+ $11.7650 -30%

46+ $9.7494 -42%

138+ $9.1000 -46% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	Yes
Number of Channels	4
Inputs - Side 1/Side 2	3/1
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	75kV/µs

Data Rate	100Mbps
Propagation Delay tpLH / tpHL (Max)	17ns, 17ns
Pulse Width Distortion (Max)	5ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	1.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package	28-SOIC-W-FP
