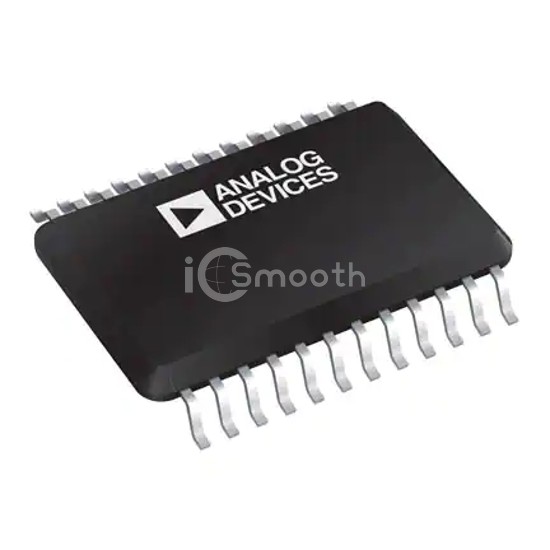

Name: ADUM5411BRSZ
Brand: Analog Devices Inc.
SKU: ADUM5411BRSZ
Price: 11.23 USD
Availability: InStock

REF: ADUM5411BRSZ Analog Devices Inc.

ADUM5411BRSZ

Analog Devices Inc.

DGTL ISO 2500VRMS 4CH GP 24SSOP

ADUM5411BRSZ is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 2500VRMS 4CH GP 24SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply 1.7V ~ 5.5V, package / case 24-SSOP (0.209", 5.30mm Width).

Datasheet Request a Quote

In Stock: 9,452

Tiered Pricing USD

1+ $11.2300 —

10+ $7.6780 -32%

59+ $6.0627 -46%

118+ $5.6059 -50%

295+ $5.3500 -52% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	Yes
Number of Channels	4
Inputs - Side 1/Side 2	3/1
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	75kV/µs

Data Rate	150Mbps
Propagation Delay tpLH / tpHL (Max)	13ns, 13ns
Pulse Width Distortion (Max)	3ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	1.7V ~ 5.5V
Operating Temperature	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.209", 5.30mm Width)
Supplier Device Package	24-SSOP
