ADUM4221ARIZ

In Stock: 2,894

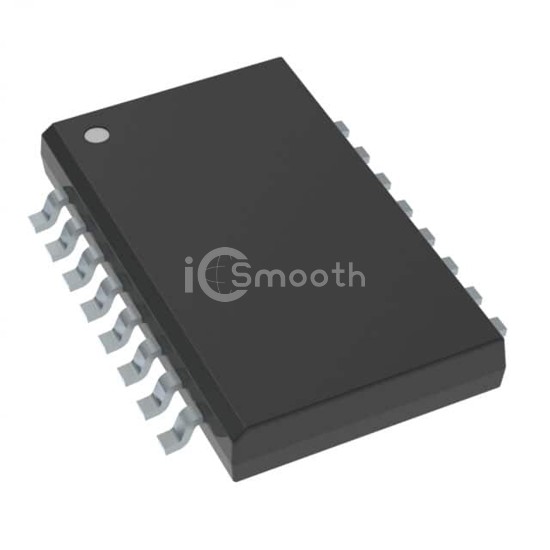

ADUM4221ARIZ - Analog Devices Inc. - PMIC - Gate Drivers
REF: ADUM4221ARIZ Analog Devices Inc.
ADUM4221ARIZ

Analog Devices Inc.

ISO 1/2 BRIDGE DRV W DEADTIME UV

ADUM4221ARIZ is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. ISO 1/2 BRIDGE DRV W DEADTIME UV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 2.5V ~ 6.5V, package / case 16-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 2,894

Tiered Pricing USD
1+ $9.2100 —
10+ $6.2210 -32%
37+ $5.1603 -44%
111+ $4.5065 -51%
259+ $4.1138 -55%
518+ $4.1000 -55% BEST

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeIGBT
Voltage - Supply2.5V ~ 6.5V
Logic Voltage - VIL, VIH1.5V, 3.5V
Current - Peak Output (Source, Sink)4A, 6A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)-
Rise / Fall Time (Typ)25ns, 30ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SOIC
