ADUM4138WBRNZ

In Stock: 2,516

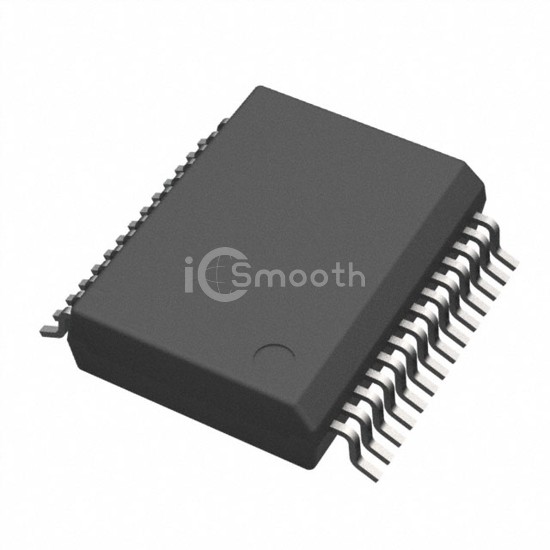

ADUM4138WBRNZ - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM4138WBRNZ Analog Devices Inc.
ADUM4138WBRNZ

Analog Devices Inc.

ISO IGBT GATE DRIVERW/FLYBACK CO

ADUM4138WBRNZ is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. ISO IGBT GATE DRIVERW/FLYBACK CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C, package / case 28-BSSOP (0.295", 7.50mm Width), approval agency CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 2,516

Tiered Pricing USD
1+ $11.9300 —
10+ $8.1880 -31%
46+ $6.6811 -44%
138+ $5.9077 -50%
276+ $5.8000 -51% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)130ns, 121ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)95ns, 100ns
Current - Output High, Low-
Current - Peak Output6A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply12V ~ 25V
Operating Temperature-40°C ~ 150°C
Mounting TypeSurface Mount
Package / Case28-BSSOP (0.295", 7.50mm Width)
Supplier Device Package28-SOIC-W-FP
Approval AgencyCSA, UL, VDE
