ADUM4122ARIZ-RL

In Stock: 9,881

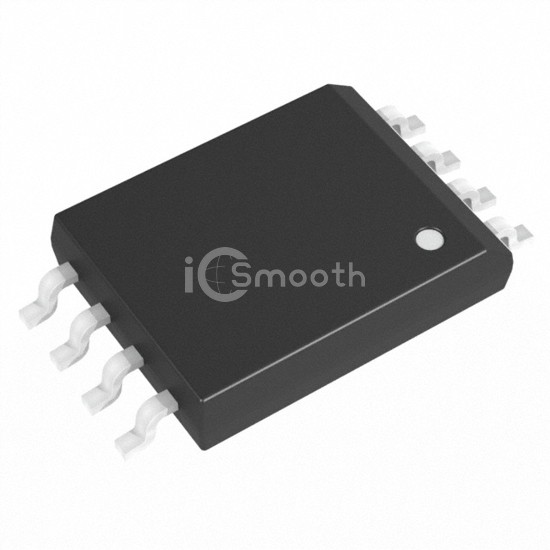

ADUM4122ARIZ-RL - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM4122ARIZ-RL Analog Devices Inc.
ADUM4122ARIZ-RL

Analog Devices Inc.

IGBT GATE DRIVER W/ SLEW RATE CO

ADUM4122ARIZ-RL is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. IGBT GATE DRIVER W/ SLEW RATE CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 9,881

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)40ns, 48ns
Pulse Width Distortion (Max)30ns
Rise / Fall Time (Typ)17ns, 17ns
Current - Output High, Low3A, 3A
Current - Peak Output2A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.5V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device Package8-SOIC-IC
Approval AgencyCQC, CSA, UL, VDE
