ADUM4122ARIZ

In Stock: 1,822

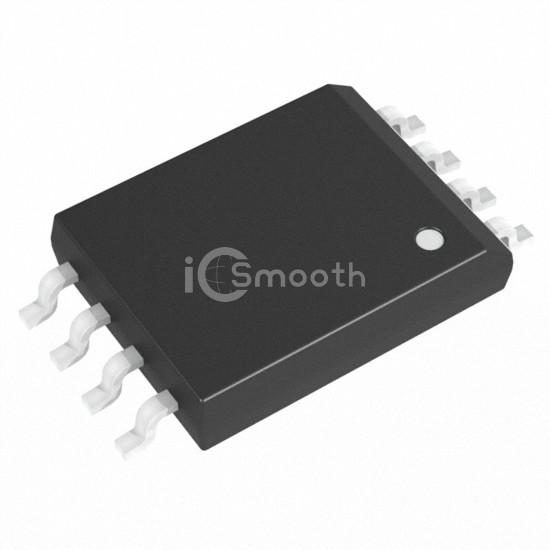

ADUM4122ARIZ - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM4122ARIZ Analog Devices Inc.
ADUM4122ARIZ

Analog Devices Inc.

IGBT GATE DRIVER W/ SLEW RATE CO

ADUM4122ARIZ is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. IGBT GATE DRIVER W/ SLEW RATE CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 1,822

Tiered Pricing USD
1+ $8.8500 —
10+ $5.9660 -33%
80+ $4.4796 -49%
160+ $4.1356 -53%
320+ $3.8875 -56% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)40ns, 48ns
Pulse Width Distortion (Max)30ns
Rise / Fall Time (Typ)17ns, 17ns
Current - Output High, Low3A, 3A
Current - Peak Output2A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.5V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device Package8-SOIC-IC
Approval AgencyCQC, CSA, UL, VDE
