ADUM4121-1TRIZ-EP

In Stock: 7,515

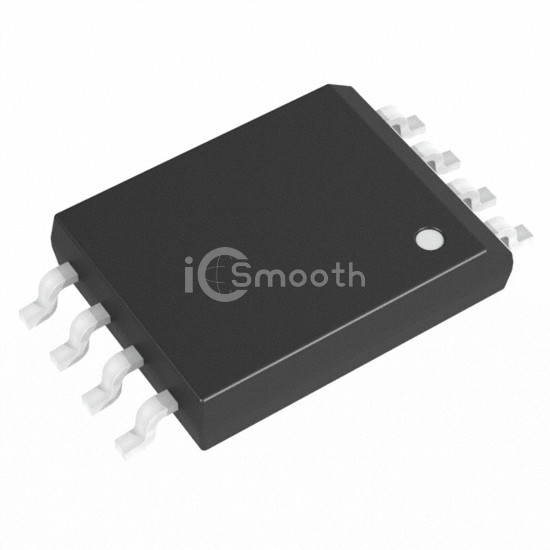

ADUM4121-1TRIZ-EP - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM4121-1TRIZ-EP Analog Devices Inc.
ADUM4121-1TRIZ-EP

Analog Devices Inc.

ISO GATE DRVR W/MILLER CLAMP W/O

ADUM4121-1TRIZ-EP is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. ISO GATE DRVR W/MILLER CLAMP W/O. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 7,515

Tiered Pricing USD
1+ $11.2900 —
10+ $7.7210 -32%
80+ $5.8865 -48%
160+ $5.4620 -52%
320+ $5.3875 -52% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)42ns, 53ns
Pulse Width Distortion (Max)13ns
Rise / Fall Time (Typ)18ns, 18ns
Current - Output High, Low-
Current - Peak Output2.3A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply7.5V ~ 35V
Operating Temperature-55°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device Package8-SOIC-IC
Approval AgencyCQC, CSA, UL, VDE
