ADUM4121-1BRIZ

In Stock: 1,912

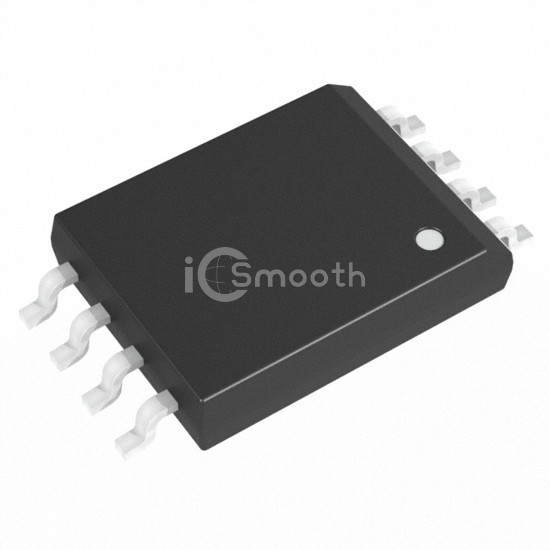

ADUM4121-1BRIZ - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM4121-1BRIZ Analog Devices Inc.
ADUM4121-1BRIZ

Analog Devices Inc.

DGTL ISO 5KV 1CH GATE DRVR 8SOIC

ADUM4121-1BRIZ is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. DGTL ISO 5KV 1CH GATE DRVR 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-SOIC (0.295", 7.50mm Width), approval agency CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 1,912

Tiered Pricing USD
1+ $8.3400 —
10+ $5.6020 -33%
80+ $4.1905 -50%
160+ $3.8638 -54%
320+ $3.5902 -57%
560+ $3.5875 -57% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels1
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)150kV/µs
Propagation Delay tpLH / tpHL (Max)42ns, 53ns
Pulse Width Distortion (Max)13ns
Rise / Fall Time (Typ)18ns, 18ns
Current - Output High, Low-
Current - Peak Output2.3A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply7.5V ~ 35V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case8-SOIC (0.295", 7.50mm Width)
Supplier Device Package8-SOIC-IC
Approval AgencyCSA, UR, VDE
