ADUM3224WARZ

In Stock: 6,114

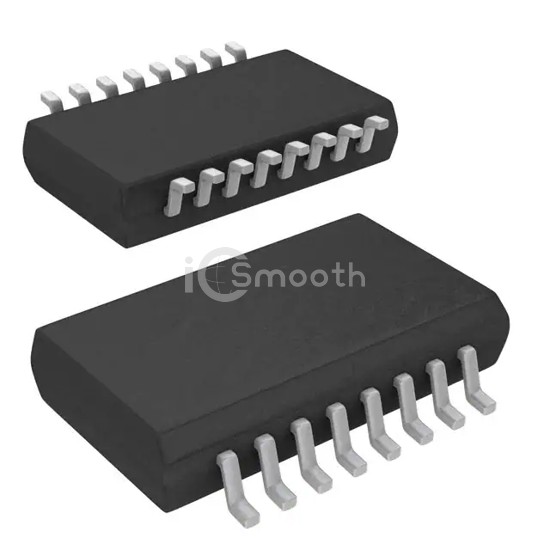

ADUM3224WARZ - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM3224WARZ Analog Devices Inc.
ADUM3224WARZ

Analog Devices Inc.

DGTL ISO 3KV 2CH GATE DVR 16SOIC

ADUM3224WARZ is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. DGTL ISO 3KV 2CH GATE DVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 6,114

Tiered Pricing USD
1+ $7.8900 —
10+ $5.2790 -33%
48+ $4.2021 -47%
144+ $3.6676 -54%
288+ $3.4000 -57%
528+ $3.3250 -58% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels2
Voltage - Isolation3000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)54ns, 54ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)12ns, 12ns
Current - Output High, Low-
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.5V ~ 18V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
Approval Agency-
