ADUM3223WCRZ

In Stock: 86
ADUM3223WCRZ - Analog Devices Inc. - Isolators - Gate Drivers
REF: ADUM3223WCRZ Analog Devices Inc.
ADUM3223WCRZ

Analog Devices Inc.

DGTL ISO 3KV 2CH GATE DVR 16SOIC

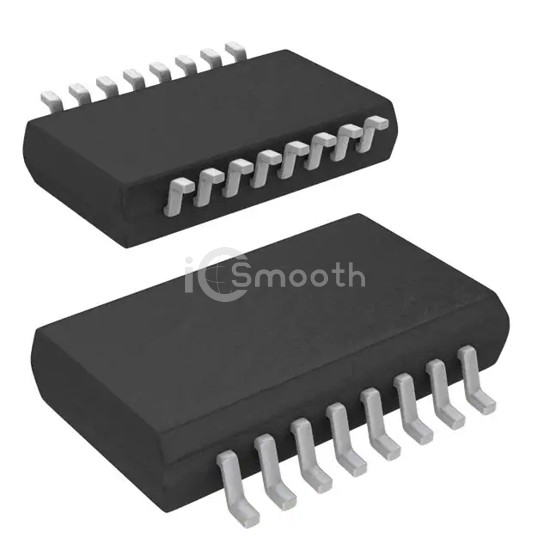

ADUM3223WCRZ is a Isolators - Gate Drivers manufactured by Analog Devices Inc.. DGTL ISO 3KV 2CH GATE DVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 86

Tiered Pricing USD
1+ $7.1500 —
48+ $4.6498 -35%
144+ $4.2651 -40%
528+ $3.9233 -45%
1,008+ $3.7892 -47%
2,016+ $3.6669 -49% BEST

Specifications

18 parameters
Product StatusActive
TechnologyMagnetic Coupling
Number of Channels2
Voltage - Isolation3000Vrms
Common Mode Transient Immunity (Min)50kV/µs
Propagation Delay tpLH / tpHL (Max)54ns, 54ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)12ns, 12ns
Current - Output High, Low-
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply11.5V ~ 18V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
Approval AgencyCSA, UR, VDE
