Name: ADUM210N1BRIZ
Brand: Analog Devices Inc.
SKU: ADUM210N1BRIZ
Price: 4.61 USD
Availability: InStock

REF: ADUM210N1BRIZ Analog Devices Inc.

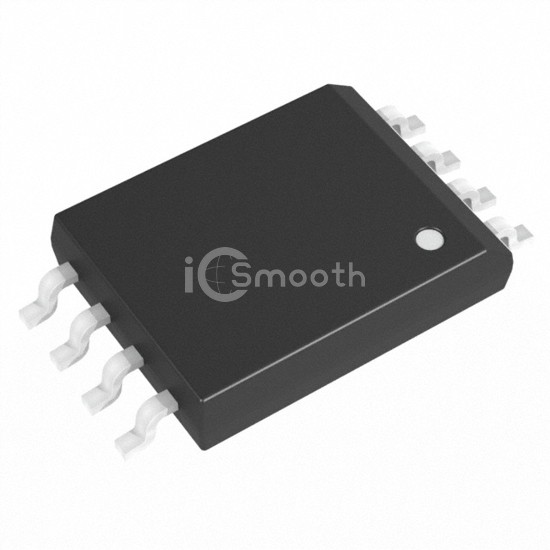

ADUM210N1BRIZ

Analog Devices Inc.

DGTL ISO 5000VRMS 1CH GP 8SOIC

ADUM210N1BRIZ is a Digital Isolators manufactured by Analog Devices Inc.. DGTL ISO 5000VRMS 1CH GP 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 1.7V ~ 5.5V, package / case 8-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 6,830

Tiered Pricing USD

1+ $4.6100 —

10+ $2.9880 -35%

80+ $2.1535 -53%

160+ $1.9604 -57%

320+ $1.7986 -61%

560+ $1.6873 -63%

1,040+ $1.5875 -66% BEST

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	1
Inputs - Side 1/Side 2	1/0
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	75kV/µs

Data Rate	150Mbps
Propagation Delay tpLH / tpHL (Max)	13ns, 13ns
Pulse Width Distortion (Max)	3ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	1.7V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.295", 7.50mm Width)
Supplier Device Package	8-SOIC-IC
