ADRF6806ACPZ-R7

In Stock: 2,842

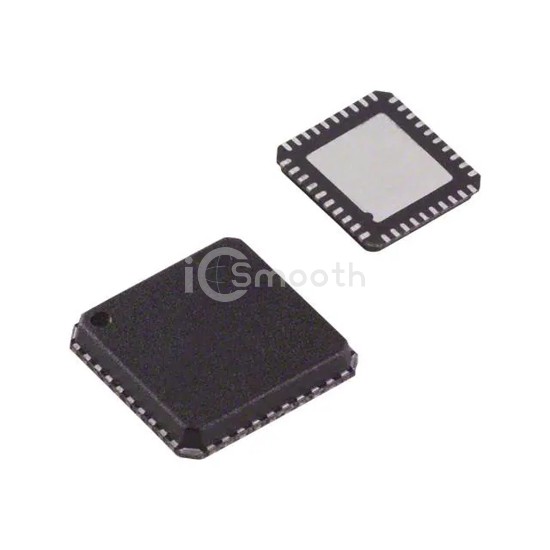

ADRF6806ACPZ-R7 - Analog Devices Inc. - RF Demodulators
REF: ADRF6806ACPZ-R7 Analog Devices Inc.
ADRF6806ACPZ-R7

Analog Devices Inc.

RF DEMOD IC 50MHZ-525MHZ 40LFCSP

ADRF6806ACPZ-R7 is a RF Demodulators manufactured by Analog Devices Inc.. RF DEMOD IC 50MHZ-525MHZ 40LFCSP. Key specifications: mounting type Surface Mount, voltage - supply 4.75V ~ 5.25V, package / case 40-VFQFN Exposed Pad, CSP, current - supply 86 mA.

Datasheet Request a Quote

In Stock: 2,842

Specifications

12 parameters
Product StatusObsolete
FunctionDemodulator, Fractional-N PLL
LO Frequency50MHz ~ 525MHz
RF Frequency50MHz ~ 525MHz
P1dB12.2dBm
Gain4.2dB
Noise Figure12.2dB
Current - Supply86 mA
Voltage - Supply4.75V ~ 5.25V
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad, CSP
Supplier Device Package40-LFCSP-VQ (6x5.75)
