ADRF5160BCPZ-R7

In Stock: 1,469

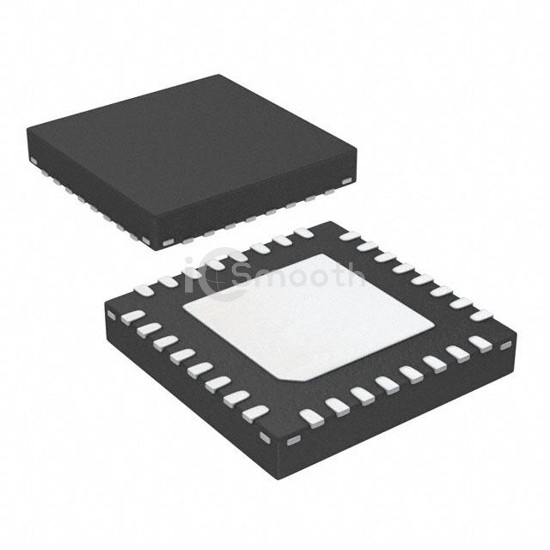

ADRF5160BCPZ-R7 - Analog Devices Inc. - RF Switches
REF: ADRF5160BCPZ-R7 Analog Devices Inc.
ADRF5160BCPZ-R7

Analog Devices Inc.

IC RF SWITCH SPDT 3.5GHZ 32LFCSP

ADRF5160BCPZ-R7 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SPDT 3.5GHZ 32LFCSP. Key specifications: operating temperature -40°C ~ 105°C, voltage - supply 4.5V ~ 5.4V, package / case 32-VFQFN Exposed Pad, CSP, frequency range 700MHz ~ 4GHz.

Datasheet Request a Quote

In Stock: 1,469

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range700MHz ~ 4GHz
Isolation35dB
Insertion Loss0.9dB
Test Frequency4GHz
P1dB47dBm
IIP370dBm
Features-
Impedance50Ohm
Voltage - Supply4.5V ~ 5.4V
Operating Temperature-40°C ~ 105°C
Package / Case32-VFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP (5x5)
