ADRF5045BCCZN-R7

In Stock: 3,112

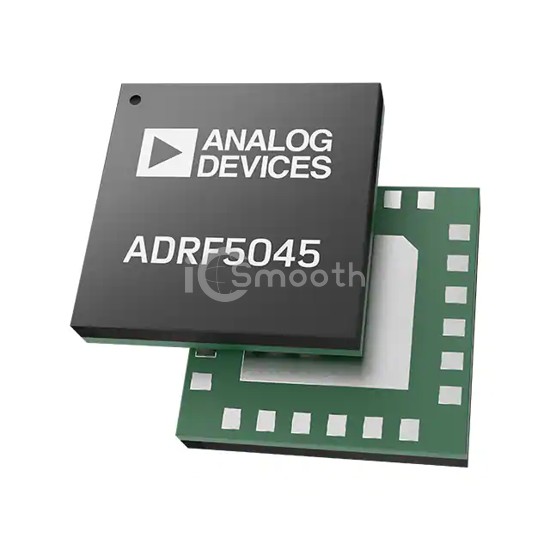

ADRF5045BCCZN-R7 - Analog Devices Inc. - RF Switches
REF: ADRF5045BCCZN-R7 Analog Devices Inc.
ADRF5045BCCZN-R7

Analog Devices Inc.

IC RF SWITCH SP4T 30GHZ 24LGA

ADRF5045BCCZN-R7 is a RF Switches manufactured by Analog Devices Inc.. IC RF SWITCH SP4T 30GHZ 24LGA. Key specifications: operating temperature -40°C ~ 85°C (TC), voltage - supply 3.15V ~ 3.45V, package / case 24-VFLGA Exposed Pad, frequency range 9kHz ~ 30GHz.

Datasheet Request a Quote

In Stock: 3,112

Tiered Pricing USD
1+ $111.3000 —
10+ $97.7620 -12% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSP4T
Frequency Range9kHz ~ 30GHz
Isolation45dB
Insertion Loss2.4dB
Test Frequency30GHz
P1dB28dBm
IIP350dBm
Features-
Impedance50Ohm
Voltage - Supply3.15V ~ 3.45V
Operating Temperature-40°C ~ 85°C (TC)
Package / Case24-VFLGA Exposed Pad
Supplier Device Package24-LGA (4x4)
