ADRF5042BCCZN-R7

In Stock: 17

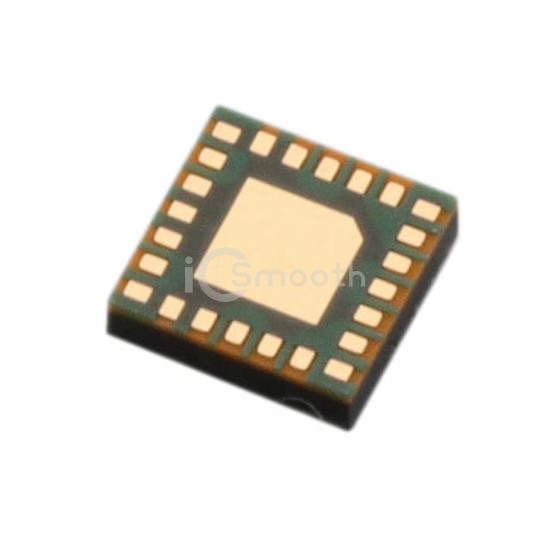

ADRF5042BCCZN-R7 - Analog Devices Inc. - RF Switches
REF: ADRF5042BCCZN-R7 Analog Devices Inc.
ADRF5042BCCZN-R7

Analog Devices Inc.

LOW INSERTION LOSS, SP4T, 40GHZ,

ADRF5042BCCZN-R7 is a RF Switches manufactured by Analog Devices Inc.. LOW INSERTION LOSS, SP4T, 40GHZ,. Key specifications: operating temperature -40°C ~ 105°C (TC), voltage - supply 3.15V ~ 3.45V, package / case 24-VFLGA Exposed Pad, frequency range 100MHz ~ 44GHz.

Datasheet Request a Quote

In Stock: 17

Tiered Pricing USD
1+ $138.3100 —
10+ $121.9740 -12%
25+ $116.3268 -16% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCellular, VSAT
TopologyAbsorptive
CircuitSP4T
Frequency Range100MHz ~ 44GHz
Isolation35dB
Insertion Loss3.2dB
Test Frequency44GHz
P1dB27dBm
IIP347dBm
Features-
Impedance50Ohm
Voltage - Supply3.15V ~ 3.45V
Operating Temperature-40°C ~ 105°C (TC)
Package / Case24-VFLGA Exposed Pad
Supplier Device Package24-LGA (3x3)
