ADRF5024SCCZ-EP

In Stock: 596

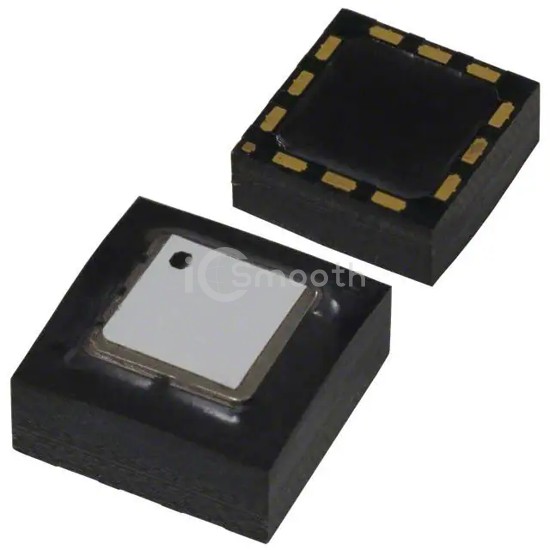

ADRF5024SCCZ-EP - Analog Devices Inc. - RF Switches
REF: ADRF5024SCCZ-EP Analog Devices Inc.
ADRF5024SCCZ-EP

Analog Devices Inc.

40GHZ, LOW LOSS, REFLECTIVE, FAS

ADRF5024SCCZ-EP is a RF Switches manufactured by Analog Devices Inc.. 40GHZ, LOW LOSS, REFLECTIVE, FAS. Key specifications: operating temperature -55°C ~ 105°C, voltage - supply 3.15V ~ 3.45V, package / case 12-VFLGA, frequency range 100MHz ~ 44GHz.

Datasheet Request a Quote

In Stock: 596

Tiered Pricing USD
1+ $179.3600 —
10+ $159.5750 -11% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCellular, Radar, VSAT
TopologyReflective
CircuitSPDT
Frequency Range100MHz ~ 44GHz
Isolation35dB
Insertion Loss2.1dB
Test Frequency44GHz
P1dB27.5dBm
IIP350dBm
Features-
Impedance50Ohm
Voltage - Supply3.15V ~ 3.45V
Operating Temperature-55°C ~ 105°C
Package / Case12-VFLGA
Supplier Device Package12-LGA (2.25x2.25)
