ADPA9002ACGZN

In Stock: 1,040

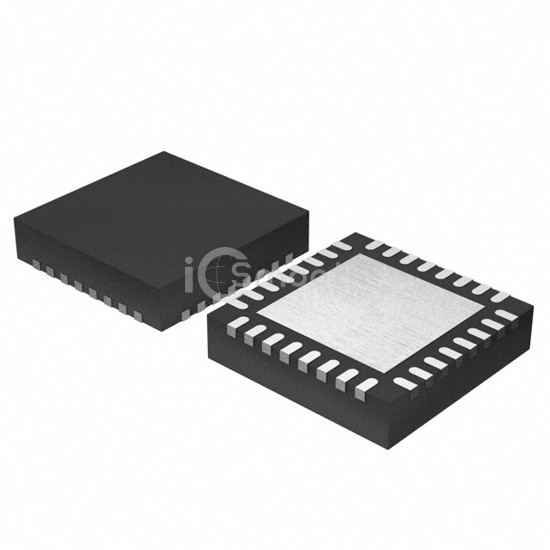

ADPA9002ACGZN - Analog Devices Inc. - RF Amplifiers
REF: ADPA9002ACGZN Analog Devices Inc.
ADPA9002ACGZN

Analog Devices Inc.

DC - 10 GHZ 2 WATT PA

ADPA9002ACGZN is a RF Amplifiers manufactured by Analog Devices Inc.. DC - 10 GHZ 2 WATT PA. Key specifications: mounting type Surface Mount, voltage - supply 10V ~ 15V, package / case 32-LFQFN Exposed Pad, CSP, current - supply 385mA.

Datasheet Request a Quote

In Stock: 1,040

Tiered Pricing USD
1+ $200.8500 —
10+ $177.5720 -12%
25+ $169.5292 -16% BEST

Specifications

12 parameters
Product StatusActive
Frequency0Hz ~ 10GHz
P1dB29dBm
Gain15.5dB
Noise Figure4dB
RF TypeGeneral Purpose
Voltage - Supply10V ~ 15V
Current - Supply385mA
Test Frequency0Hz ~ 5GHz
Mounting TypeSurface Mount
Package / Case32-LFQFN Exposed Pad, CSP
Supplier Device Package32-LFCSP-CAV (5x5)
