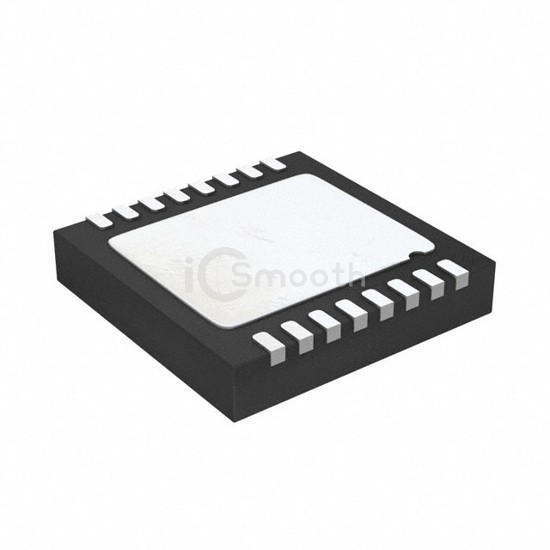

Name: ADP8140ACPZ-1-R7
Brand: Analog Devices Inc.
SKU: ADP8140ACPZ-1-R7
Price: 8.54 USD
Availability: InStock

REF: ADP8140ACPZ-1-R7 Analog Devices Inc.

ADP8140ACPZ-1-R7

Analog Devices Inc.

IC LED DRV LIN PWM 500MA 16LFCSP

ADP8140ACPZ-1-R7 is a PMIC - LED Drivers manufactured by Analog Devices Inc.. IC LED DRV LIN PWM 500MA 16LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), package / case 16-WFDFN Exposed Pad, CSP, current - output / channel 500mA.

Datasheet Request a Quote

In Stock: 476

Tiered Pricing USD

1+ $8.5400 —

10+ $5.7390 -33%

25+ $5.0100 -41%

100+ $4.1855 -51%

250+ $3.7807 -56%

500+ $3.7000 -57% BEST

Specifications

16 parameters

Product Status	Active
Type	Linear
Topology	-
Internal Switch(s)	Yes
Number of Outputs	4
Voltage - Supply (Min)	3V
Voltage - Supply (Max)	30V
Voltage - Output	-

Current - Output / Channel	500mA
Frequency	-
Dimming	Analog, PWM
Applications	Backlight, Lighting
Operating Temperature	-40°C ~ 105°C (TA)
Mounting Type	Surface Mount
Package / Case	16-WFDFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-WD (4x4)
