Name: ADP7185ACPZN-R7
Brand: Analog Devices Inc.
SKU: ADP7185ACPZN-R7
Price: 6.52 USD
Availability: InStock

REF: ADP7185ACPZN-R7 Analog Devices Inc.

ADP7185ACPZN-R7

Analog Devices Inc.

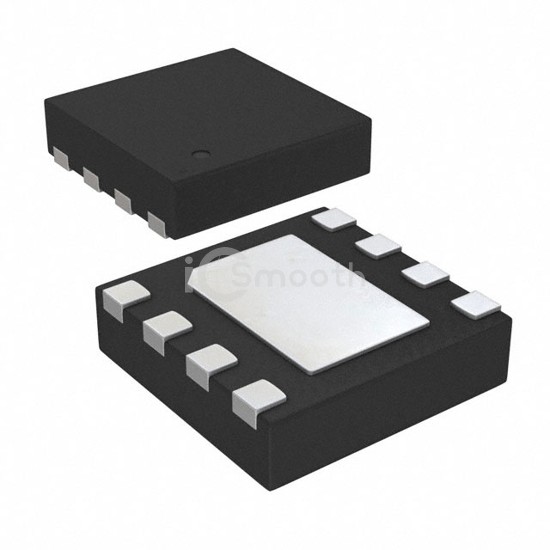

IC REG LIN NEG ADJ 500MA 8LFCSP

ADP7185ACPZN-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN NEG ADJ 500MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-UFDFN Exposed Pad, CSP, current - supply (max) 7 mA.

Datasheet Request a Quote

In Stock: 8,096

Tiered Pricing USD

1+ $6.5200 —

10+ $4.3120 -34%

25+ $3.7364 -43%

100+ $3.0859 -53%

250+ $2.7665 -58%

500+ $2.5700 -61%

1,000+ $2.5625 -61% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	-5.5V
Voltage - Output (Min/Fixed)	-0.5V
Voltage - Output (Max)	-5V
Voltage Dropout (Max)	0.36V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	900 µA
Current - Supply (Max)	7 mA
PSRR	80dB ~ 40dB (1kHz ~ 1MHz)
Control Features	Enable, Power On Reset
Protection Features	Over Current
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-UFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP (2x2)
