Name: ADP7183ACPZN1.2-R7
Brand: Analog Devices Inc.
SKU: ADP7183ACPZN1.2-R7
Price: 6.31 USD
Availability: InStock

REF: ADP7183ACPZN1.2-R7 Analog Devices Inc.

ADP7183ACPZN1.2-R7

Analog Devices Inc.

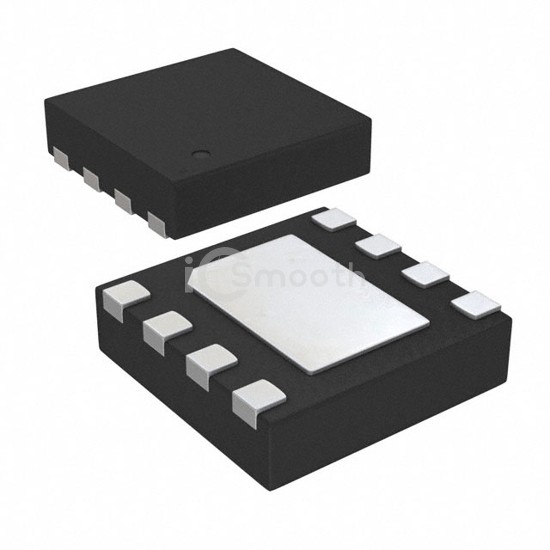

IC REG LINEAR -1.2V 300MA 8LFCSP

ADP7183ACPZN1.2-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR -1.2V 300MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-UFDFN Exposed Pad, CSP, current - supply (max) 7 mA.

Datasheet Request a Quote

In Stock: 2,874

Tiered Pricing USD

1+ $6.3100 —

10+ $4.1650 -34%

25+ $3.6060 -43%

100+ $2.9740 -53%

250+ $2.6636 -58%

500+ $2.4727 -61%

1,000+ $2.4500 -61% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	-5.5V
Voltage - Output (Min/Fixed)	-1.2V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.22V @ 300mA
Current - Output	300mA

Current - Quiescent (Iq)	900 µA
Current - Supply (Max)	7 mA
PSRR	85dB ~ 40dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Current Limit, Thermal Overload
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-UFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP (2x2)
