Name: ADP7182ACPZ-R7
Brand: Analog Devices Inc.
SKU: ADP7182ACPZ-R7
Price: 6.31 USD
Availability: InStock

REF: ADP7182ACPZ-R7 Analog Devices Inc.

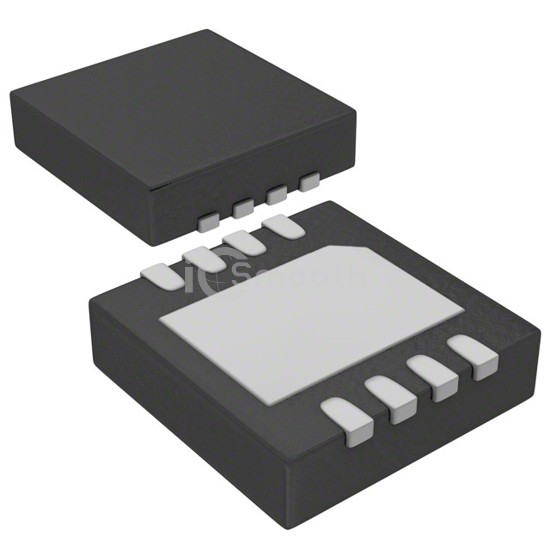

ADP7182ACPZ-R7

Analog Devices Inc.

IC REG LIN NEG ADJ 200MA 8LFCSP

ADP7182ACPZ-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN NEG ADJ 200MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 850 µA.

Datasheet Request a Quote

In Stock: 2,755

Tiered Pricing USD

1+ $6.3100 —

10+ $4.1650 -34%

25+ $3.6060 -43%

100+ $2.9740 -53%

250+ $2.6636 -58%

500+ $2.4727 -61% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Negative
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	-28V
Voltage - Output (Min/Fixed)	-1.22V
Voltage - Output (Max)	-27.64V
Voltage Dropout (Max)	0.36V @ 200mA
Current - Output	200mA

Current - Quiescent (Iq)	53 µA
Current - Supply (Max)	850 µA
PSRR	66dB ~ 45dB (10kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
