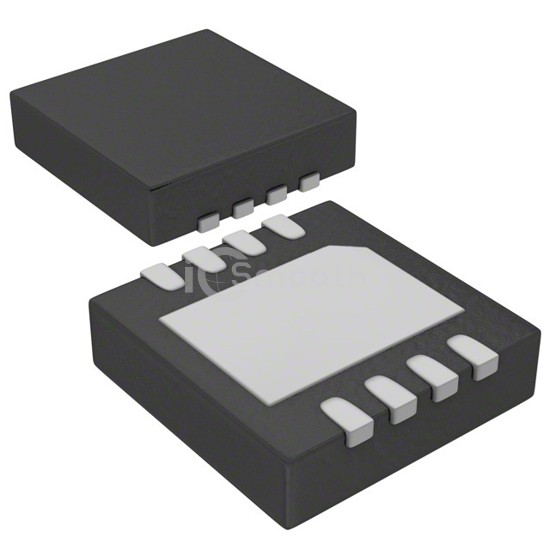

Name: ADP7105ACPZ-R2
Brand: Analog Devices Inc.
SKU: ADP7105ACPZ-R2
Price: 5.54 USD
Availability: InStock

REF: ADP7105ACPZ-R2 Analog Devices Inc.

ADP7105ACPZ-R2

Analog Devices Inc.

IC REG LIN POS ADJ 500MA 8LFCSP

ADP7105ACPZ-R2 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LIN POS ADJ 500MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 1.6 mA.

Datasheet Request a Quote

In Stock: 478

Tiered Pricing USD

1+ $5.5400 —

10+ $3.6310 -34%

25+ $3.1332 -43%

100+ $2.5697 -54% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	1.22V
Voltage - Output (Max)	19V
Voltage Dropout (Max)	0.55V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	900 µA
Current - Supply (Max)	1.6 mA
PSRR	80dB ~ 50dB (10kHz ~ 100kHz)
Control Features	Enable, Power Good, Under Voltage Lockout
Protection Features	Over Current, Over Temperature, Reverse Polarity
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
