Name: ADP7105ACPZ-3.3-R7
Brand: Analog Devices Inc.
SKU: ADP7105ACPZ-3.3-R7
Price: 5.49 USD
Availability: InStock

REF: ADP7105ACPZ-3.3-R7 Analog Devices Inc.

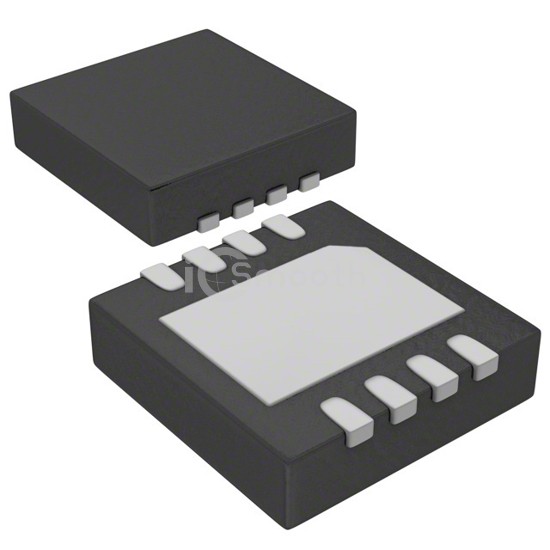

ADP7105ACPZ-3.3-R7

Analog Devices Inc.

IC REG LINEAR 3.3V 500MA 8LFCSP

ADP7105ACPZ-3.3-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 3.3V 500MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 1.6 mA.

Datasheet Request a Quote

In Stock: 1,090

Tiered Pricing USD

1+ $5.4900 —

10+ $3.5970 -34%

25+ $3.1032 -43%

100+ $2.5441 -54%

250+ $2.2696 -59%

500+ $2.1008 -62% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.35V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	900 µA
Current - Supply (Max)	1.6 mA
PSRR	60dB ~ 50dB (10kHz ~ 100kHz)
Control Features	Enable, Power Good, Soft Start
Protection Features	Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
