Name: ADP7104ACPZ-9.0-R7
Brand: Analog Devices Inc.
SKU: ADP7104ACPZ-9.0-R7
Price: 6.12 USD
Availability: InStock

REF: ADP7104ACPZ-9.0-R7 Analog Devices Inc.

ADP7104ACPZ-9.0-R7

Analog Devices Inc.

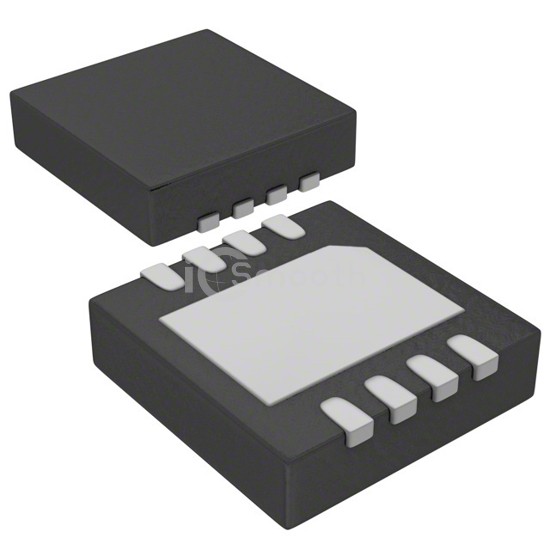

IC REG LINEAR 9V 500MA 8LFCSP

ADP7104ACPZ-9.0-R7 is a PMIC - Voltage Regulators - Linear manufactured by Analog Devices Inc.. IC REG LINEAR 9V 500MA 8LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 8-WFDFN Exposed Pad, CSP, current - supply (max) 1.6 mA.

Datasheet Request a Quote

In Stock: 20,028

Tiered Pricing USD

1+ $6.1200 —

10+ $4.0330 -34%

25+ $3.4892 -43%

100+ $2.8738 -53%

250+ $2.5717 -58%

500+ $2.3859 -61% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	20V
Voltage - Output (Min/Fixed)	9V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.55V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	900 µA
Current - Supply (Max)	1.6 mA
PSRR	-
Control Features	Enable, Power Good, Under Voltage Lockout
Protection Features	Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-WFDFN Exposed Pad, CSP
Supplier Device Package	8-LFCSP-WD (3x3)
