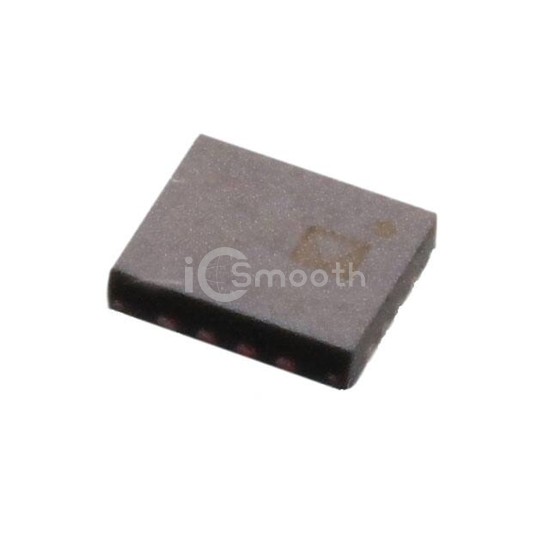

Name: ADP5600ACPZ-R7
Brand: Analog Devices Inc.
SKU: ADP5600ACPZ-R7
Price: 11.44 USD
Availability: InStock

REF: ADP5600ACPZ-R7 Analog Devices Inc.

ADP5600ACPZ-R7

Analog Devices Inc.

INVERTING CHARGE PUMP & LOW NOIS

ADP5600ACPZ-R7 is a PMIC - Voltage Regulators - Linear + Switching manufactured by Analog Devices Inc.. INVERTING CHARGE PUMP & LOW NOIS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 2.7V ~ 16V, package / case 16-WQFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 5,394

Tiered Pricing USD

1+ $11.4400 —

10+ $7.8350 -32%

25+ $6.8948 -40%

100+ $5.8318 -49%

250+ $5.4875 -52% BEST

Specifications

15 parameters

Product Status	Active
Topology	Charge Pump (1), Linear (LDO) (1)
Number of Outputs	2
Frequency - Switching	100kHz ~ 1MHz
Voltage/Current - Output 1	Fixed, Adjustable
Voltage/Current - Output 2	Fixed, Adjustable, -505mV to -16.5V, 100mA
Voltage/Current - Output 3	Fixed, Adjustable
w/LED Driver	No

w/Supervisor	No
w/Sequencer	No
Voltage - Supply	2.7V ~ 16V
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad, CSP
Supplier Device Package	16-LFCSP-WQ (4x4)
