Name: ADP5301ACBZ-1-R7
Brand: Analog Devices Inc.
SKU: ADP5301ACBZ-1-R7
Price: 4.07 USD
Availability: InStock

REF: ADP5301ACBZ-1-R7 Analog Devices Inc.

ADP5301ACBZ-1-R7

Analog Devices Inc.

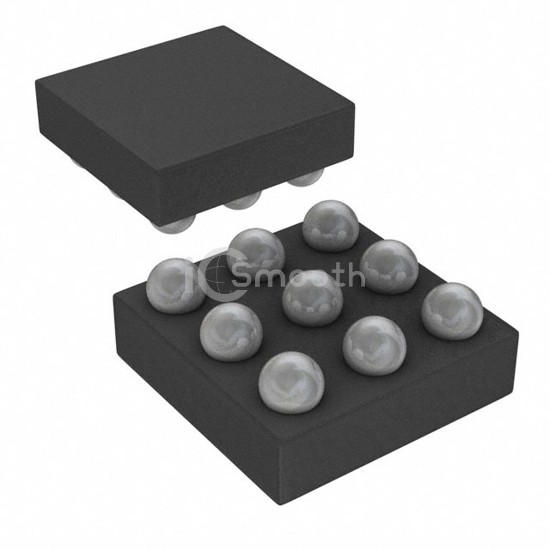

IC REG BUCK PROG 9WLCSP

ADP5301ACBZ-1-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK PROG 9WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 9-WFBGA, WLCSP, current - output 50mA, 500mA.

Datasheet Request a Quote

In Stock: 6,822

Tiered Pricing USD

1+ $4.0700 —

10+ $2.6240 -36%

25+ $2.2460 -45%

100+ $1.8182 -55%

250+ $1.6082 -60%

500+ $1.4789 -64%

1,000+ $1.3707 -66% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Programmable
Number of Outputs	1
Voltage - Input (Min)	2.15V
Voltage - Input (Max)	6.5V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	5V
Current - Output	50mA, 500mA
Frequency - Switching	2MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	9-WFBGA, WLCSP
Supplier Device Package	9-WLCSP (1.87x1.65)
