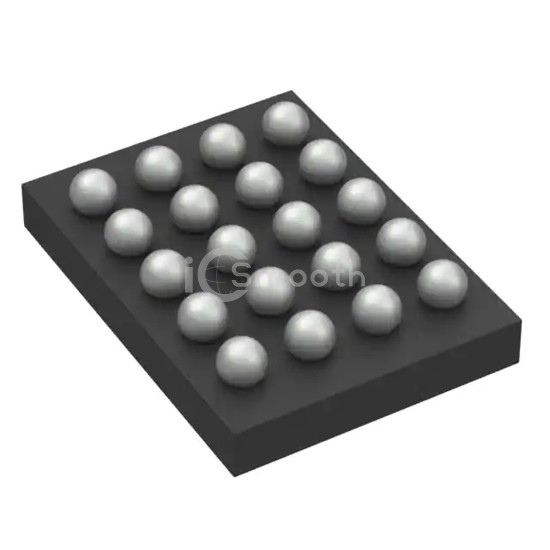

Name: ADP5076ACBZ-R7
Brand: Analog Devices Inc.
SKU: ADP5076ACBZ-R7
Price: 6.43 USD
Availability: InStock

REF: ADP5076ACBZ-R7 Analog Devices Inc.

ADP5076ACBZ-R7

Analog Devices Inc.

V+/V- SW REGULATOR WITH 2A/1.2A

ADP5076ACBZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. V+/V- SW REGULATOR WITH 2A/1.2A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-UFBGA, WLCSP, current - output 2A (Switch), 1.2A (Switch).

Datasheet Request a Quote

In Stock: 9,707

Specifications

17 parameters

Product Status	Active
Function	Step-Up
Output Configuration	Positive and Negative
Topology	Boost
Output Type	Adjustable
Number of Outputs	2
Voltage - Input (Min)	2.85V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	35V, -30V
Current - Output	2A (Switch), 1.2A (Switch)
Frequency - Switching	1.2MHz, 2.4MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-UFBGA, WLCSP
Supplier Device Package	20-WLCSP (1.61x2.18)
