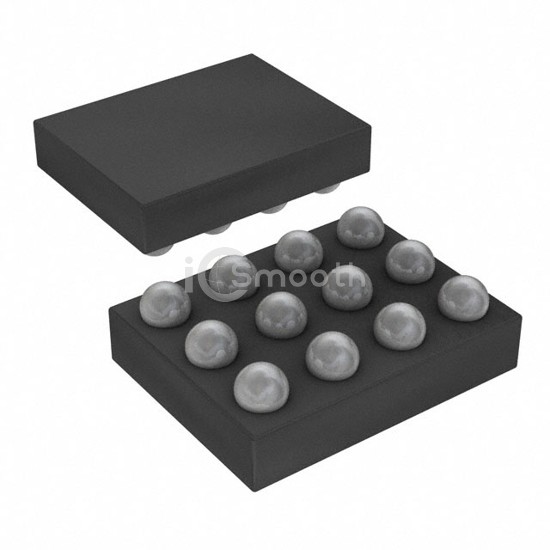

Name: ADP5075ACBZ-R7
Brand: Analog Devices Inc.
SKU: ADP5075ACBZ-R7
Price: 4.79 USD
Availability: InStock

REF: ADP5075ACBZ-R7 Analog Devices Inc.

ADP5075ACBZ-R7

Analog Devices Inc.

IC REG BCK BST INV 800MA 12WLCSP

ADP5075ACBZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BCK BST INV 800MA 12WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 12-UFBGA, WLCSP, current - output 800mA.

Datasheet Request a Quote

In Stock: 12,485

Tiered Pricing USD

1+ $4.7900 —

10+ $3.1120 -35%

25+ $2.6748 -44%

100+ $2.1802 -54%

250+ $1.9374 -60%

500+ $1.7879 -63%

1,000+ $1.6750 -65% BEST

Specifications

17 parameters

Product Status	Active
Function	Ratiometric, Step-Up/Step-Down
Output Configuration	Negative
Topology	Buck-Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.85V
Voltage - Input (Max)	15V
Voltage - Output (Min/Fixed)	Vin-39V

Voltage - Output (Max)	-
Current - Output	800mA
Frequency - Switching	1.2MHz, 2.4MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, WLCSP
Supplier Device Package	12-WLCSP (1.61x2.18)
