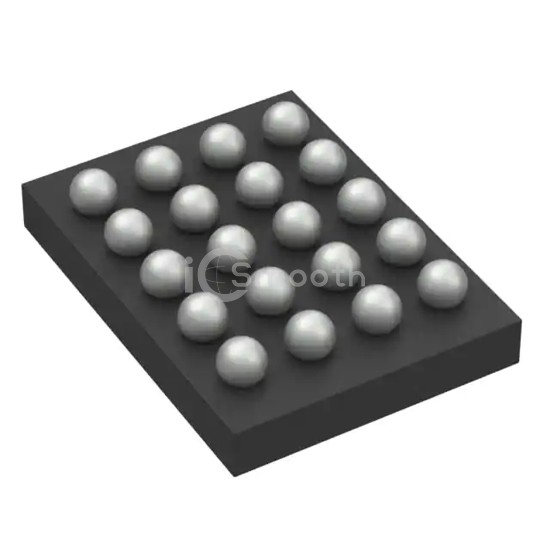

Name: ADP5072ACBZ-R7
Brand: Analog Devices Inc.
SKU: ADP5072ACBZ-R7
Price: 8.22 USD
Availability: InStock

REF: ADP5072ACBZ-R7 Analog Devices Inc.

ADP5072ACBZ-R7

Analog Devices Inc.

IC REG FOR BIP

ADP5072ACBZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG FOR BIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-UFBGA, WLCSP, current - output 600mA, 1A.

Datasheet Request a Quote

In Stock: 4,059

Tiered Pricing USD

1+ $8.2200 —

10+ $5.5100 -33%

25+ $4.8052 -42%

100+ $4.0077 -51%

250+ $3.6162 -56%

500+ $3.5125 -57% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up
Output Configuration	Positive and Negative (Dual Rail)
Topology	Boost
Output Type	Adjustable
Number of Outputs	2
Voltage - Input (Min)	2.85V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	35V
Current - Output	600mA, 1A
Frequency - Switching	1.2MHz, 2.4MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	20-UFBGA, WLCSP
Supplier Device Package	20-WLCSP (1.61x2.18)
