ADP5061ACBZ-5-R7

In Stock: 22

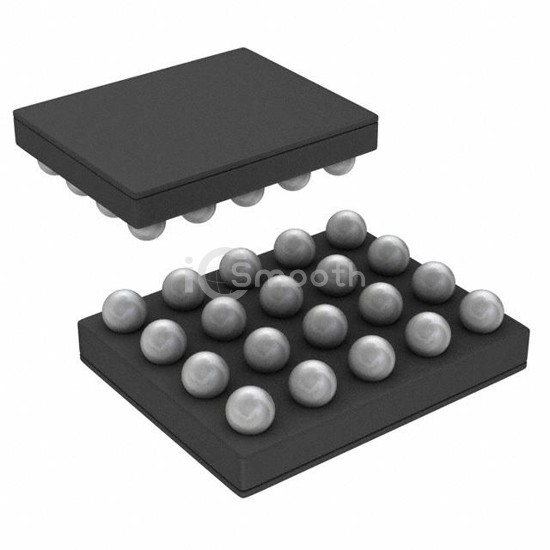

ADP5061ACBZ-5-R7 - Analog Devices Inc. - PMIC - Battery Chargers
REF: ADP5061ACBZ-5-R7 Analog Devices Inc.
ADP5061ACBZ-5-R7

Analog Devices Inc.

IC BATT CHG LI-ION 1CELL 20WLCSP

ADP5061ACBZ-5-R7 is a PMIC - Battery Chargers manufactured by Analog Devices Inc.. IC BATT CHG LI-ION 1CELL 20WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 20-WFBGA, WLCSP, interface I²C, USB.

Datasheet Request a Quote

In Stock: 22

Tiered Pricing USD
1+ $5.0900 —
10+ $3.3220 -35%
25+ $2.8600 -44%
100+ $2.3374 -54%
250+ $2.2338 -56% BEST

Specifications

14 parameters
Product StatusActive
Battery ChemistryLithium Ion
Number of Cells1
Current - ChargingConstant - Programmable
Programmable Features-
Fault Protection-
Charge Current - Max1.3A
Battery Pack Voltage4.3V
Voltage - Supply (Max)6.7V
InterfaceI²C, USB
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case20-WFBGA, WLCSP
Supplier Device Package20-WLCSP (2x2.6)
