ADP3118JCPZ-RL

In Stock: 21,785

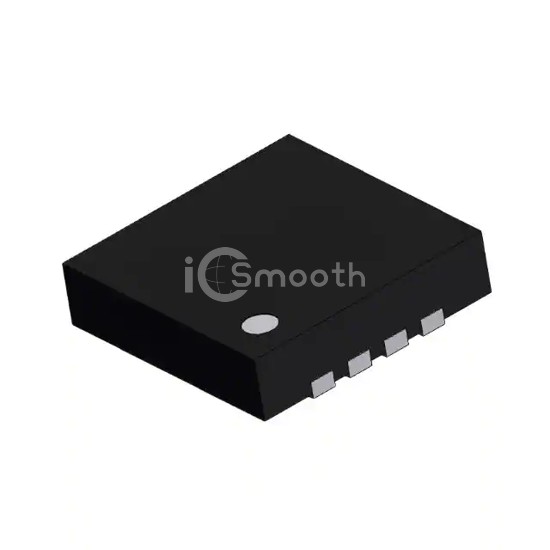

ADP3118JCPZ-RL - Analog Devices Inc. - PMIC - Gate Drivers
REF: ADP3118JCPZ-RL Analog Devices Inc.
ADP3118JCPZ-RL

Analog Devices Inc.

DUAL BOOTSTRAPPED 12 VOLT MOSFET

ADP3118JCPZ-RL is a PMIC - Gate Drivers manufactured by Analog Devices Inc.. DUAL BOOTSTRAPPED 12 VOLT MOSFET. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 150°C (TJ), voltage - supply 4.15V ~ 13.2V, package / case 8-VFDFN Exposed Pad, CSP.

Datasheet Request a Quote

In Stock: 21,785

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeSynchronous
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.15V ~ 13.2V
Logic Voltage - VIL, VIH0.8V, 2V
Current - Peak Output (Source, Sink)-
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)25 V
Rise / Fall Time (Typ)25ns, 20ns
Operating Temperature0°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-VFDFN Exposed Pad, CSP
Supplier Device Package8-LFCSP (3x3)
