Name: ADP2442ACPZ-R7
Brand: Analog Devices Inc.
SKU: ADP2442ACPZ-R7
Price: 7.49 USD
Availability: InStock

REF: ADP2442ACPZ-R7 Analog Devices Inc.

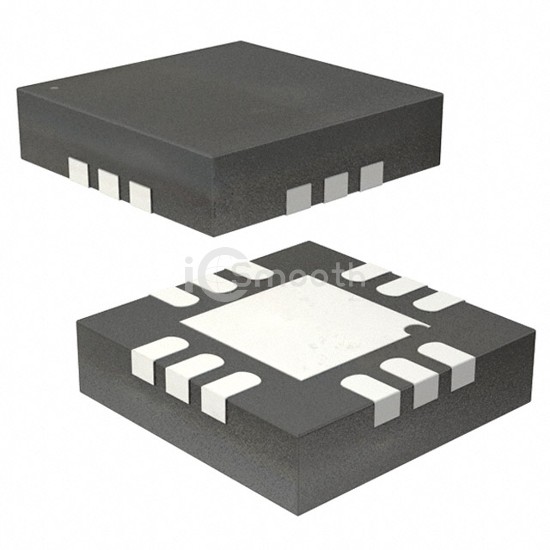

ADP2442ACPZ-R7

Analog Devices Inc.

IC REG BUCK ADJ 1A 12LFCSP

ADP2442ACPZ-R7 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Analog Devices Inc.. IC REG BUCK ADJ 1A 12LFCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 12-WFQFN Exposed Pad, CSP, current - output 1A.

Datasheet Request a Quote

In Stock: 4,591

Tiered Pricing USD

1+ $7.4900 —

10+ $4.9980 -33%

25+ $4.3476 -42%

100+ $3.6121 -52%

250+ $3.2510 -57%

500+ $3.1000 -59% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	0.6V

Voltage - Output (Max)	32.4V
Current - Output	1A
Frequency - Switching	300kHz ~ 1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-WFQFN Exposed Pad, CSP
Supplier Device Package	12-LFCSP-WQ (3x3)
